Battery Code | MHB Battery Code | Voltage (V) | Capacity (Ah) | Rate | Dimension (mm) | Terminal Type | Weight (kg) |
L | W | H | HH |
|
| 6 | 4 | 10 | 84 | 71 | 93 | 93 | Wire | 0.85 |
|
| 6 | 4 | 10 | 79 | 47 | 99 | 99 | Wire | 0.79 |
|
| 12 | 2.3 | 10 | 113 | 38 | 86 | 86 | Lead/Copper | 0.9 |
|
| 12 | 2.3 | 10 | 114 | 49 | 85 | 85 | Lead/Copper | 0.99 |
YB2.5L-C | YB2.5L-C | 12 | 2.5 | 10 | 80 | 77 | 104 | 104 | Wire | 1.12 |
YB3L-A(B) | YB3L-A(B) | 12 | 3 | 10 | 98 | 56 | 109 | 109 | Lead | 1.32 |
YB3L-A(B) | YB3L-A(B) | 12 | 3 | 10 | 98 | 56 | 109 | 109 | Copper | 1.32 |
YTX4L-BS | YTX4L-BS | 12 | 3 | 10 | 113.5 | 71 | 84.5 | 84.5 | Lead/Copper | 1.2 |
YTX4L-BS | YTX4L-BS | 12 | 3 | 10 | 113.5 | 71 | 84.5 | 84.5 | Lead/Copper | 1.3 |
YTX4L-BS | 6-MFQ-4A-1 | 12 | 4 | 10 | 114 | 70 | 85 | 85 | Lead/Copper | 1.30 |
YTX4L-BS | 6-MFQ-4A-2 | 12 | 4 | 10 | 114 | 70 | 85 | 85 | Lead/Copper | 1.40 |
YTX4L-BS | 6-MFQ-4A-3 | 12 | 4 | 10 | 114 | 70 | 85 | 85 | Lead/Copper | 1.46 |
YTX4L-BS | 6-FMQ-4A-4 | 12 | 4 | 10 | 114 | 70 | 85 | 85 | Lead/Copper | 1.49 |
YTX4L-BS | 6-MFQ-4A-1 | 12 | 4 | 10 | 114 | 70 | 88 | 88 | Lead/Copper | 1.30 |
YTX4L-BS | 6-MFQ-4A-2 | 12 | 4 | 10 | 114 | 70 | 88 | 88 | Lead/Copper | 1.40 |
YTX4L-BS | 6-MFQ-4A-3 | 12 | 4 | 10 | 114 | 70 | 88 | 88 | Lead/Copper | 1.46 |
YTX4L-BS | 6-FMQ-4A-4- | 12 | 4 | 10 | 114 | 70 | 88 | 88 | Lead/Copper | 1.49 |
YTX5L-BS | 6-MFQ-5A-1(wide) | 12 | 4.2 | 10 | 114 | 70 | 106 | 106 | Lead/Copper | 1.62 |
YTX5L-BS | 6-MFQ-5A-2 (wide) | 12 | 5 | 10 | 114 | 70 | 106 | 106 | Lead/Copper | 1.76 |
YTX5L-BS | 6-MFQ-5A-3(wide) | 12 | 5 | 10 | 114 | 70 | 106 | 106 | Lead/Copper | 1.86 |
YTX5L-BS | 6-MFQ-5A-4(wide) | 12 | 5 | 10 | 114 | 70 | 106 | 106 | Lead/Copper | 1.90 |
YB5L-B | 6-MFQ-5B-3(high) | 12 | 5 | 10 | 120 | 61 | 130 | 130 | Lead/Copper | 1.75 |
YB5L-B | 6-MFQ-5B-1(high) | 12 | 5 | 10 | 120 | 61 | 130 | 130 | Lead/Copper | 1.88 |
YB5L-B | 6-MFQ-5B-2 (high) | 12 | 5 | 10 | 120 | 61 | 130 | 130 | Lead/Copper | 2.00 |
YB5L-B | 6-MFQ-5B-5(high) | 12 | 5 | 10 | 120 | 61 | 130 | 130 | Lead/Copper | 2.02 |
12N6.5-3B | 6-MFQ-6.5-1 | 12 | 6.5 | 10 | 138 | 66 | 101 | 101 | Lead/Copper | 1.85 |
12N6.5-3B | 6-MFQ-6.5-2 | 12 | 6.5 | 10 | 138 | 66 | 101 | 101 | Lead/Copper | 1.96 |
12N6.5-3B | 6-MFQ-6.5-3 | 12 | 6.5 | 10 | 138 | 66 | 101 | 101 | Lead/Copper | 2.10 |

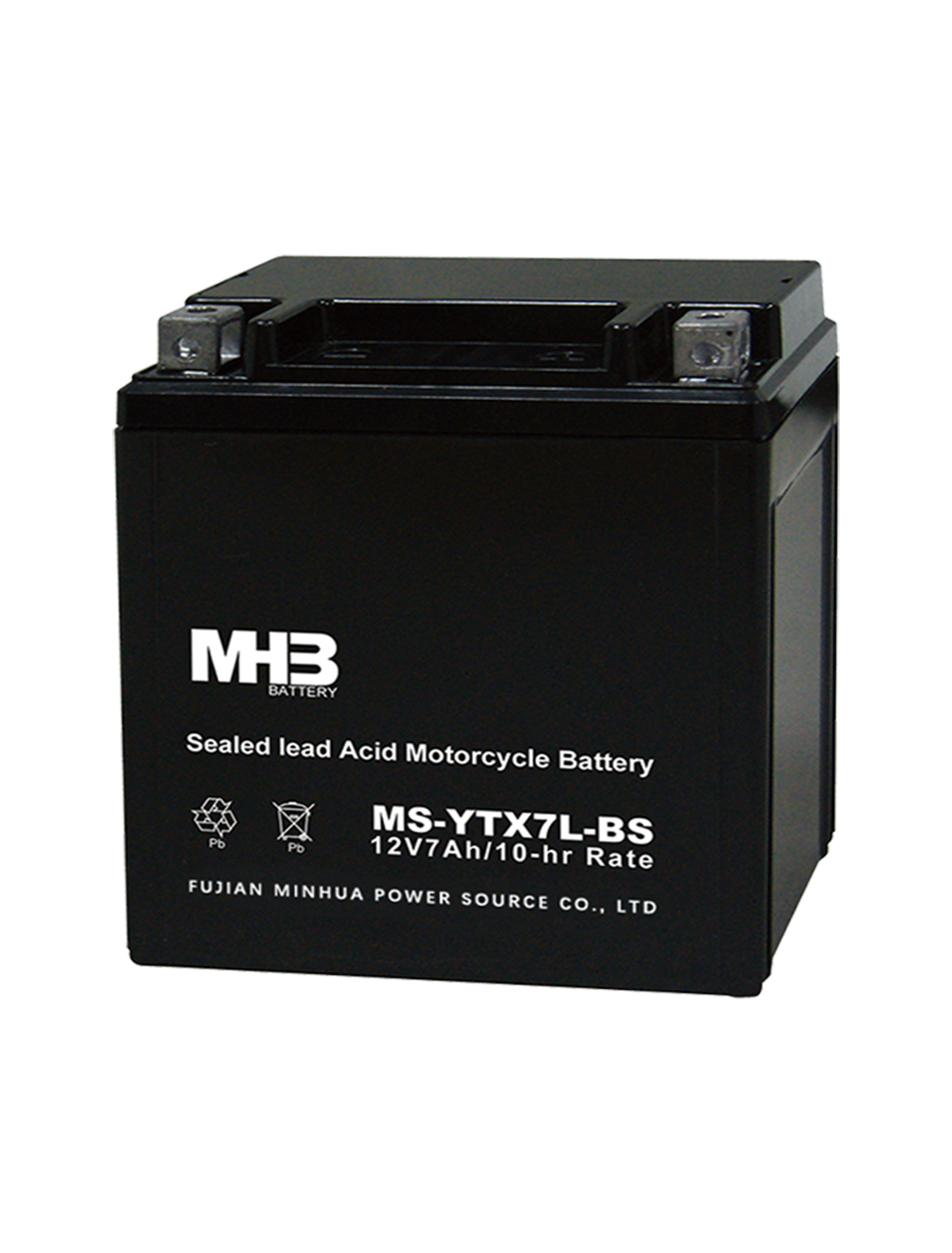

YTX7L-BS | 6-MFQ-7A | 12 | 7 | 10 | 114 | 69 | 132 | 132 | Lead/Copper | 2.32 |
YTX7L-BS | 6-MFQ-7AR | 12 | 7 | 10 | 114 | 69 | 132 | 132 | Lead/Copper | 2.32 |

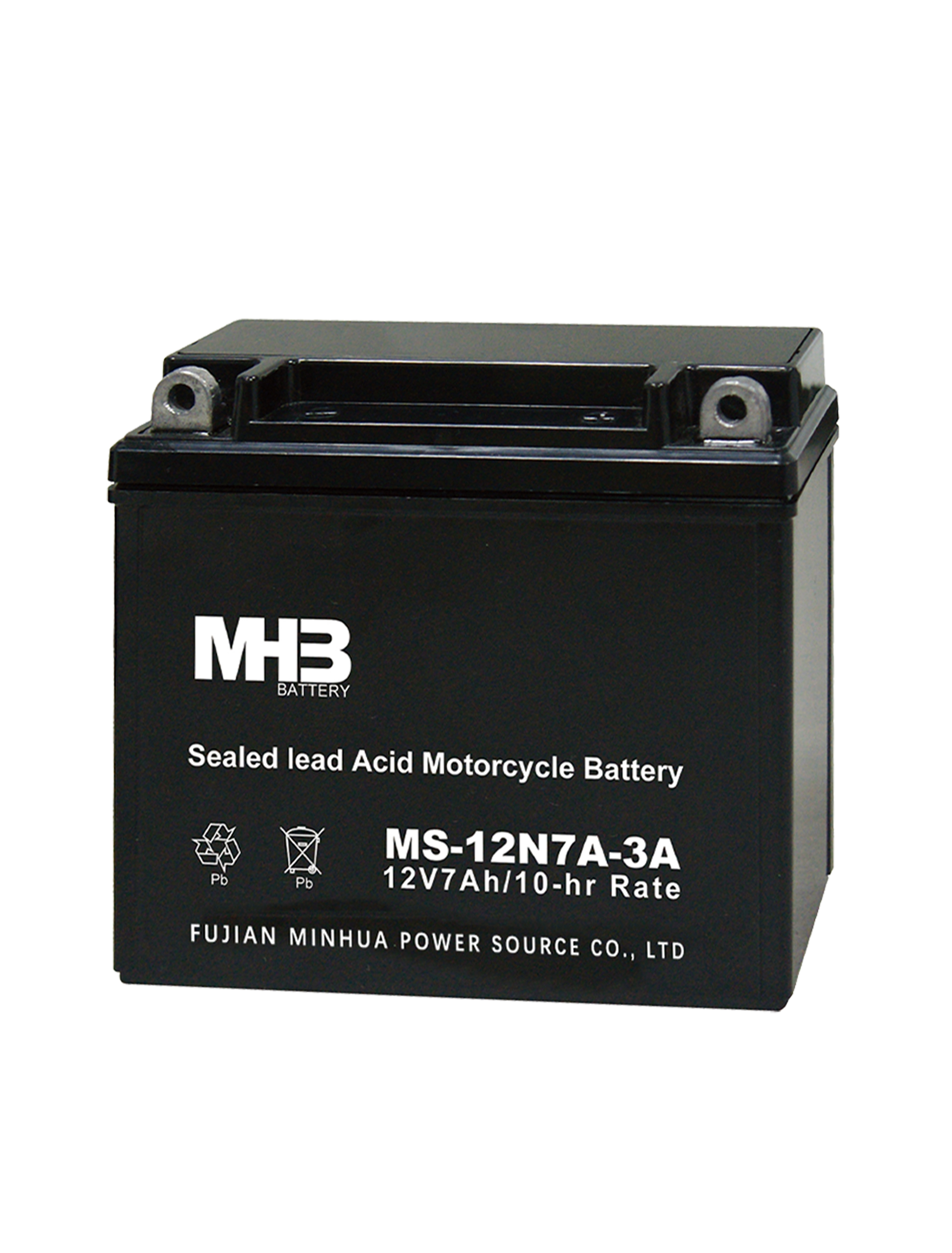

12N7A-3A | 6-MFQ-7C-4 | 12 | 7 | 10 | 148 | 57 | 129 | 129 | Lead/Copper | 2.33 |
12N7A-3A | 6-MFQ-7C-1 | 12 | 7 | 10 | 148 | 57 | 129 | 129 | Lead/Copper | 2.45 |
12N7A-3A | 6-MFQ-7C-2 | 12 | 7 | 10 | 148 | 57 | 129 | 129 | Lead/Copper | 2.59 |
12N7A-3A | 6-MFQ-7C-3 | 12 | 7 | 10 | 148 | 57 | 129 | 129 | Lead/Copper | 2.68 |
YTX7A-BS | 6-MFQ-7D-1 | 12 | 7 | 10 | 150 | 86 | 94 | 94 | Lead/Copper | 2.40 |
YTX7A-BS | 6-MFQ-7D-2 | 12 | 7 | 10 | 150 | 86 | 94 | 94 | Lead/Copper | 2.42 |
YTX7A-BS | 6-MFQ-7D-3 | 12 | 7 | 10 | 150 | 86 | 94 | 94 | Lead/Copper | 2.50 |
YTX7A-BS | 6-MFQ-7D-4 | 12 | 7 | 10 | 150 | 86 | 94 | 94 | Lead/Copper | 2.65 |
YTZ7A | 6-MFQ-7N-1 | 12 | 7 | 10 | 136 | 76 | 125 | 125 | Lead/Copper | 2.40 |
YTZ7A | 6-MFQ-7N-2 | 12 | 7 | 10 | 136 | 76 | 125 | 125 | Lead/Copper | 2.50 |
YTZ7A | 6-MFQ-7N-3 | 12 | 7 | 10 | 136 | 76 | 125 | 125 | Lead/Copper | 2.73 |

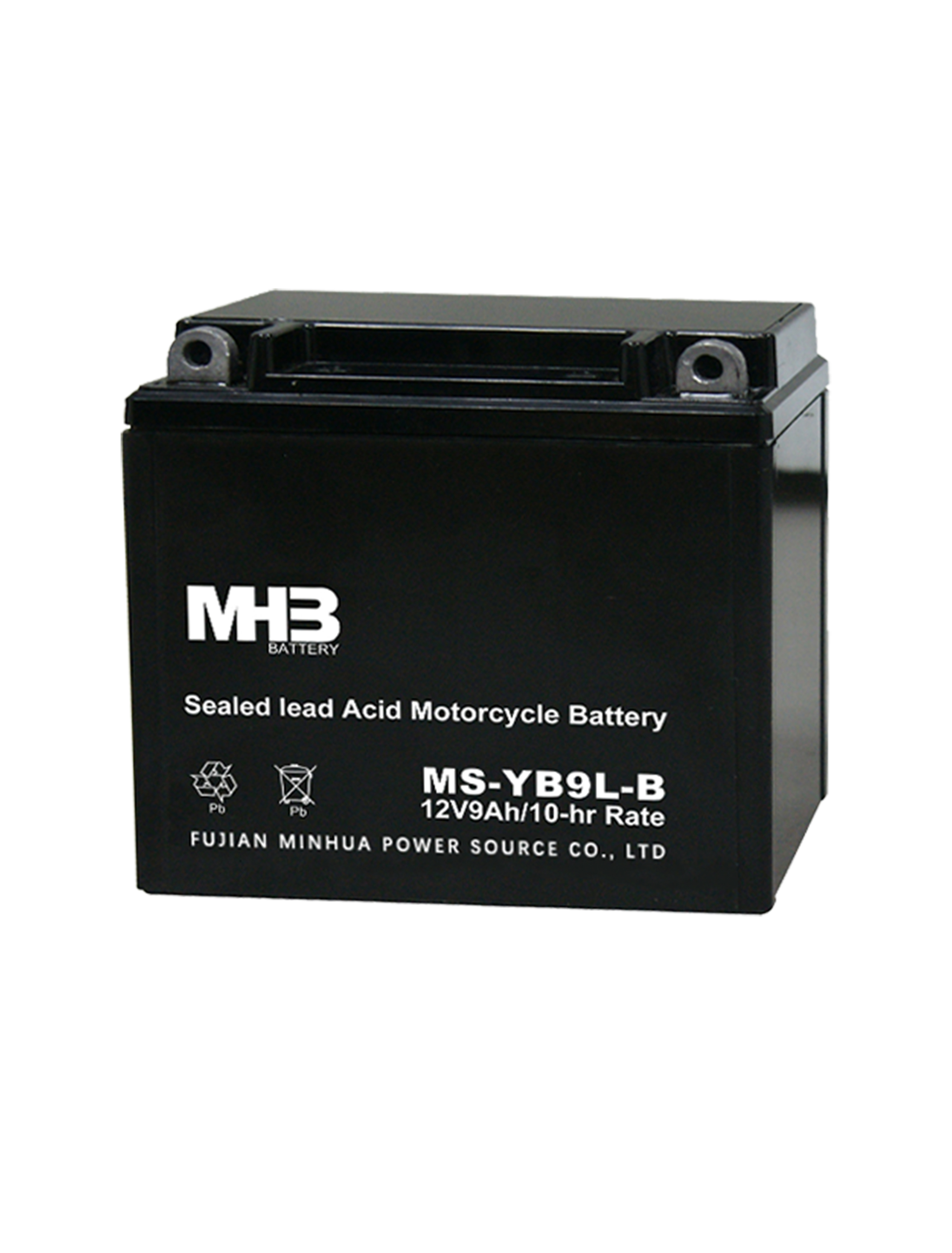

12M9-4B/YB9L-B | 6-MFQ-9A-3 | 12 | 9 | 10 | 136 | 77 | 136 | 136 | Lead/Copper | 2.60 |
12M9-4B/YB9L-B | 6-MFQ-9A-1 | 12 | 9 | 10 | 136 | 77 | 136 | 136 | Lead/Copper | 2.75 |
12M9-4B/YB9L-B | 6-MFQ-9A-2 | 12 | 9 | 10 | 136 | 77 | 136 | 136 | Lead/Copper | 2.90 |
12M9-4B/YB9L-B | 6-MFQ-9A-4 | 12 | 9 | 10 | 136 | 77 | 136 | 136 | Lead/Copper | 3.10 |
YTX9-BS | 6-MFQ-9B-1 | 12 | 9 | 10 | 150 | 86 | 106 | 106 | Lead/Copper | 2.70 |
YTX9-BS | 6-MFQ-9B-2 | 12 | 9 | 10 | 150 | 86 | 106 | 106 | Lead/Copper | 2.90 |
YTX9-BS | 6-MFQ-9B-3 | 12 | 9 | 10 | 150 | 86 | 106 | 106 | Lead/Copper | 3.06 |
YTX12-BS | YTX12-BS | 12 | 12 | 10 | 150 | 86 | 131 | 131 | Lead/Copper | 4.13 |
YTX14L-BS | YTX14L-BS | 12 | 14 | 10 | 150 | 86 | 146 | 146 | Lead/Copper | 4.32 |
6-MFQ-18B | 6-MFQ-18B | 12 | 18 | 10 | 150 | 86 | 154 | 154 | Lead/Copper | 5.60 |
6-MFQ-18BR | 6-MFQ-18BR | 12 | 18 | 10 | 150 | 86 | 154 | 154 | Lead/Copper | 5.60 |
|
|
|
|
|
|
|
|
|
|
|
